Var21_1,25_FSG.pdf

TLC

Architectural Metalwork

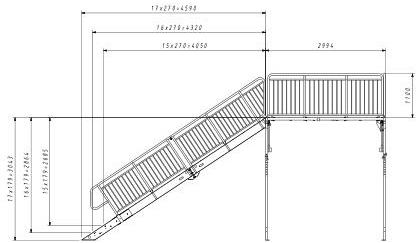

VAR 21-1,2 Railing standard type

Distributed load - 34N/m2

Point load - 1.5kN 1200x2001mm

Notes:

  1. Execution class: ERC2
  2. Steps: grating: 200x1250 OFF SHORE TYPE AP40
  3. Rails: standard
  4. Landing: grating 240x2092 OFF SHORE TYPE AP40
  5. Steel grades: S355, S255 for grating as per EN 10025
  6. Structure treated as per EN ISO 13920, class C and G
  7. Surface preparation Sa 2 1/2 as per ISO 8501
  8. Zinc coating: hot dig galvanized coating as per EN ISO 1469

Foundation level of stairs and container need to be the same

Foundations according to container height
Container heightDistance 4
32003050
38004500
72009570
All foundations dimensions: 500x500x1150mm
