ISO 20'HC One Way Container - CTX techn. Skizzen.pdf

5/12/2026

PRINCIPAL PARTICULAR
MAX. GROSS WEIGHT		30480	KG	67200	LBS
TARE WEIGHT(±2%)		2100	KG	4630	LBS
MAX. CARGO WEIGHT		28380	KG	62570	LBS
CLIBIC CAPACITY		37.4	W-2	1320	FT-3
STACKING CAPACITY,POST		86400	KG	190480	LBS
RACKING TEST LOAD		150	KN
FLOOR TEST LOAD		5460	KG	12000	LBS

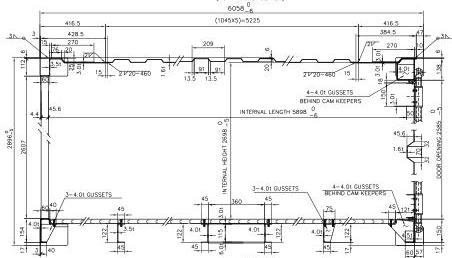

EXTERNAL	HEIGHT	2898	3/8 MM	9"-6"	1/32"W"
	WIDTH	2438	3/8 MM	9"	1/32"W"
	LENGTH	6058	3/8 MM	20"	1/162"W"
INTERNAL	HEIGHT	2698	3/8 MM	8"-10	15/84" 1/32"W"
	WIDTH	2352	3/8 MM	7"-8	19/32" 1/32"W"
	LENGTH	5898	3/8 MM	19"-4	13/84" 1/162"W"
DOOR OPENING	HEIGHT	2585	3/8 MM	8"-5	49/64" 1/32"W"
	WIDTH	2340	3/8 MM	7"-8	1/8" 1/32"W"
8	APPLICATION OF SEALANT	CTXH-1001X	174-00	1
---	---	---	---	---
7	CONSOLIDATED PLATED	CTXH-7001X	174-00	1
6	ARRANGEMENT OF MARKING	CTXH-7000X	174-00	1
5	ROOF ASSEMBLY	CTXTH-6000X	174-00	1
4	SIDE ASSEMBLY	CTXH-5000X	174-00	2
3	REAR ASSEMBLY	CTXH-4000X	174-00	1
2	FRONT ASSEMBLY	CTXH-3000X	174-00	1
1	BASE ASSEMBLY	CTXTH-2000X	174-00	1
NO	DESCRIPTION	DWG NO.	ISSUE	QTY.

TITLE: 20"x8"x9"GENERAL ASSEMBLY

OWNED BY: CONTANEX	SCALE: 1:45	SIZE: A3
DESIGNED BY: Sep.28,2017	WEIGHT: KG	QTY:
CHECKED BY: Sep.28,2017	DWG No.: CTXH-1000X
APPROVED BY: Sep.28,2017
SHEET 1 OF 1: SHEETS	ISSUE: 174-00

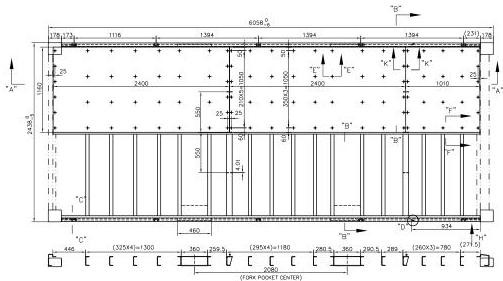

DETAIL LASHING RING 1:2

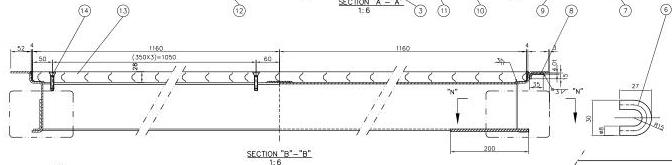

SECTION "B"–"B" 1:6

SECTION "E"–"E" 1:6

SECTION "N"–"N" 1:6

14	SELF TAPPING SCREW	B032180011	SWRCH22A(E,Z,P,)	200
13	FLOOR ASS'Y	B131500001	BAMBOD	1
12	CROSS MEMBER SMALL	B120135012	SPA-H	12
11	FORK POCKET BOTTOM PLATE	B110160020	SPA-H	4
10	FORK POCKET TOP PLATE	B100130012	SPA-H	2
9	CROSS MEMBER LARGE	B090140012	SPA-H	2
8	FORK POCKET ANGLE	B080140012	SPA-H	4
7	STIFFENER–CROSS MEMBER(L)	B070140010	SPA-H	6
6	DOOR HOOK HOLDER	B060280010	SS41(E,Z,P,)	2
5	FLOOR CENTER RAIL	B050140010	SPA-H	1 SET
4	B S R CORNER STIFFENER	B040140012	SPA-H	4
3	FORK POCKET – SIDE RAIL	B030140012	SPA-H	4
2	BOTTOM SIDE RAIL	B020140012	SPA-H	2
1	LASHING RING	S0202A2011	SS41(E,Z,P,)	10
NO	DESCRIPTION	DWG NO.	MT'L	QTY.

TITLE: 20'x8'x9'6" BASE ASSEMBLY

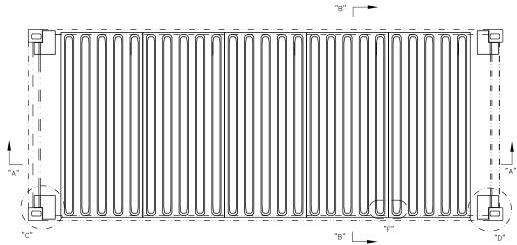

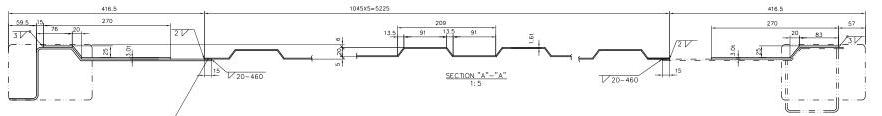

SECTION "A"–"A" 1:5

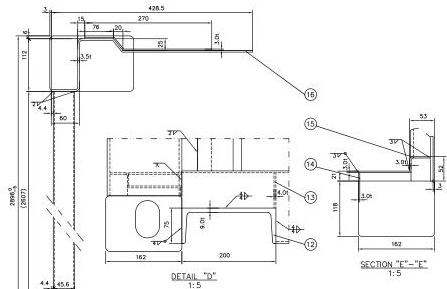

16	FRONT HEADER	F160135012	SPA-H	1
15	FRONT BOTTOM CORNER COVER PLATE	F150130010	SPA-H	2
14	FRONT BOTTOM CORNER SUPPORT ANGLE	F140130010	SPA-H	2
13	FRONT C.O.P. COVER PLATE	F130140010	SPA-H	2
12	FRONT CONE DAMAGE PROTECTOR	F120290010	SS41	2
11	FRONT C.O.P. COVER PLATE	F110140010	SPA-H	2
10	FRONT BOTTOM RAIL STRIPENER	F100140010	SPA-H	3
9	FRONT BOTTOM CORNER SUPPORT	F090130010	SPA-H	2
8	FRONT BOTTOM RAIL	F080140010	SPA-H	1
4	FRONT LASHING BAR	F0402A4010	SS41(E.Z.P.)	6
3	FRONT PANEL	F030116012	SPA-H	2
2	FRONT CORNER POST	F020160012	SPA-H	2
1	CORNER CASTING	F010800011	SCM49	1 SET
NO	DESCRIPTION	DWG NO.	MTL	QTY.

TITLE:20'x8'x9'6" FRONT ASSEMBLY

OWNED BY: CONTAINER		SCALE:	1:20	SIZE:	A3
DESIGNED BY:		Sep.28,2017	WEIGHT:	KG	QTY:
CHECKED BY:		Sep.28,2017	DWG No.: CT-891-3000X
APPROVED BY:		Sep.28,2017
SHEET	1 OF 1	SHEETS	ISSUE:	17A-00

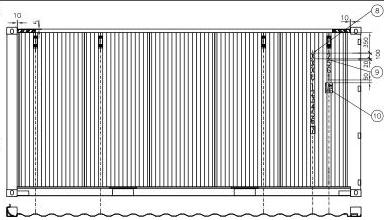

38	BOLT	M10 x 25	SS41(H.D.G.)	3
37	PACKING-BRACKET SMALL	R371235011	E.P.D.M	8
36	PACKING-BRACKET LARGE	R361210011	E.P.D.M	8
35	DOOR HOLDER	R051760011	NYLON	2
34	HINGE PIN	R3405A2011	STAINLESS STEEL	8
33	HINGE	R330700011	S251(E.Z.P.)	8
32	HINGE WASHER OB/T97.1	R051012011	STAINLESS STEEL	8
31	HINGE LUG	R310280011	SS41(E.Z.P.)	16
30	DOOR SILL STIFFENER	R300140010	SPA-H	4
29	REAR COND DAMAGE PROTECTOR	R290290020	SS41	2
28	REAR C.O.P. COVER PLATE	R280130010	SPA-H	2
27	REAR BOTTOM CORNER SUPPORT	R270130010	SPA-H	2
26	REAR BOTTOM CORNER SUPPORT	R260130010	SPA-H	2
25	BOTTOM CORNER SPACER	R250160010	SPA-H	2
24	DOOR SILL	R240145010	SPA-H	1
23	DOOR GASKET ASS'Y	R231200411	E.P.D.M	1 SET
22	BLIND RIVET OB/T 12618	#4.8 x 15	DW600.000.000.9415	83
21	GASKET RETAINER ASS'Y	R210510411	STAINLESS STEEL	1 SET
20	HUCK BOLT & COLLAR	H10416	S25C.440.500(H.D.G.)	1
19	HUCK BOLT & COLLAR	H1048	S25C.440.500(H.D.G.)	5
18	DOOR PANEL	R180116410	SPA-H	2
17	REAR LASHING BAR	R1702A2010	SS41(E.Z.P.)	8
16	SPRING WASHER OB/T93	A10	SWRH32(E.Z.P.)	50
15	NUT OB/T6170	M10	SS41(H.D.G.)	50
14	BOLT	M10 x 30	SS41(H.D.G.)	3
13	BOLT	M10 x 20	SS41(H.D.G.)	44
12	DOOR HORIZONTAL RAIL	R120130010	SPA-H	4
11	DOOR HEADER LOWER	R110140010	SPA-H	1
10	DOOR HEADER STIFFENER	R100140010	SPA-H	4
9	DOOR HEADER UPPER	R090130020	SPA-H	1
8	LOCKING BOX OR TIR PLATE	STD0.007020		1 SET
7	PACKING-HANDLE RETAINER	R071235011	E.P.D.M	4
6	LOCKING DEVICE ASS'Y	R050632411	H.D.G	1 SET
5	DOOR VERTICAL RAIL	R050132410	SPA-H	4
4	D.E.M. BLOCKING PLATE	R040130010	SPA-H	8
3	REAR CORNER POST INNER	R0304A2410	SM50YA	2
2	REAR CORNER CASTING	F010800011	SCW49	1 SET
1	REAR CORNER POST OUTER	R010160410	SPA-H	2

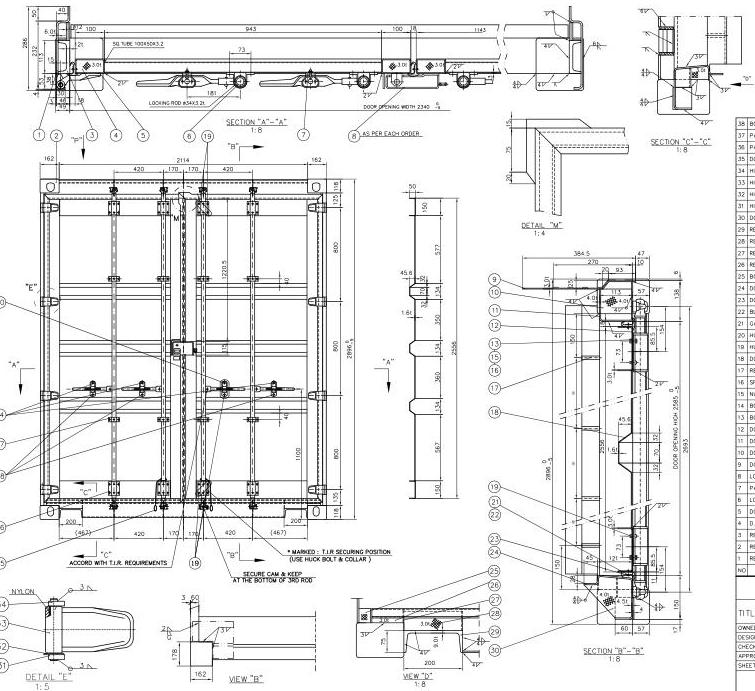

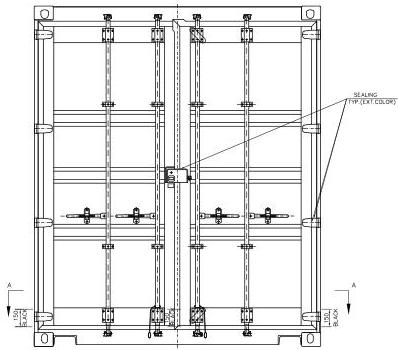

NO	DESCRIPTION	DWG NO.	MTL	QTY.

TITLE: 20"X8"X9"6" REAR ASSEMBLY

DWNED BY: Container	SCALE:	1:20	SIZE:	A3
DESIGNED BY:	Sep.28,2017	WEIGHT:	KG	QTY:
CHECKED BY:	Sep.28,2017	DWG No.: CT841-3000X
APPROVED BY:	Sep.28,2017
SHEET 1 OF 1	SHEETS	ISSUE:	17A-00

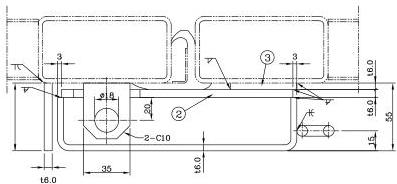

SECTION A-A

SECTION B-B

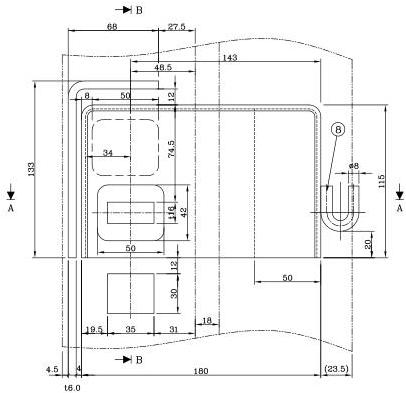

REMARK: 1. 件(5)(6)(7)焊装于左门方管； 2. 其余装配后焊装于右门方管。

8	HOLDER		SS41	1	#8 (E.Z.P.)
7	SIDE PLATE		SPA-H	1	16.0
6	BAFFLE		SS41	1	120
5	LOCK HOLE		SS41	1	116
4	PATCH-B		SPA-H	1	16.0
3	PATCH-A		SPA-H	1	16.0
2	BOTTOM PLATE		SPA-H	1	16.0
1	FRONT PLATE		SPA-H	1	16.0
NO.	ITEM	DWG.NO.	MT'L	QTY	REMARK

---	---	---	---	---	---
DRAWN BY	DESIGNED BY	CHECKED BY	APPROVED BY	20' /40' /40' HC
LOCK BOX
SCALE
1:1	DATE
20060612	CHECKED		DWG. NO.
STDG-007020
SIZE. NO.
		MARK.

DETAIL LASHING RING 7:2

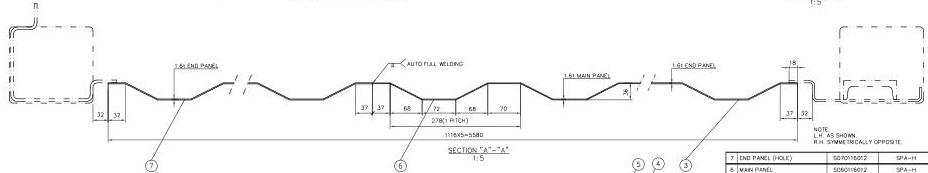

7	END PANEL (HOLE)	S070116012	SPA-H	2
6	MAIN PANEL	S060116012	SPA-H	1
5	HUOI BOLT	HS X 6A	ALUM	12
4	VENTILATOR	S041100011	A.B.S	4
3	END PANEL (HOLE)	S030116012	SPA-H	2
2	LASHING RING	S0202A2011	SS41(E,2,P,)	5
1	TOP SIDE RAIL	S010130010	SPA-H	1

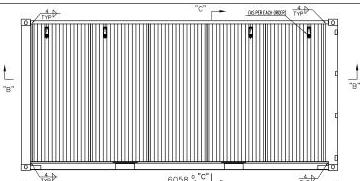

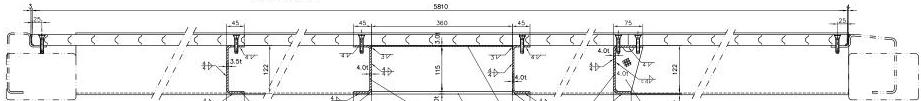

NO	DESCRIPTION	DWG NO.	MTL	QTY.

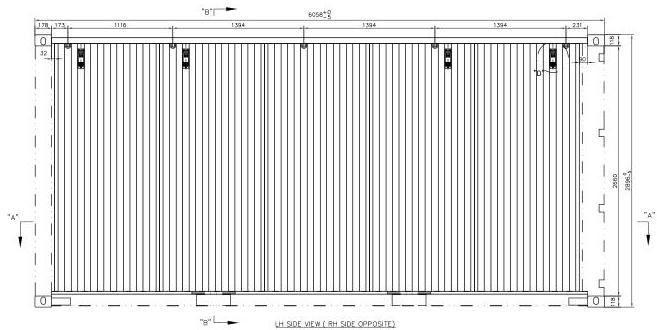

TITLE: 20'x8'x9'6" SIDE ASSEMBLY

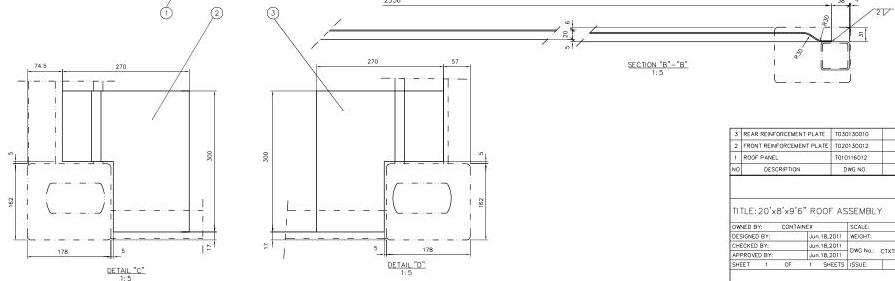

3	REAR REINFORCEMENT PLATE		1030130010	SPA-H	2
2	FRONT REINFORCEMENT PLATE		1020130012	SPA-H	2
1	ROOF PANEL		1010116012	SPA-H	5
NO	DESCRIPTION		DWG NO.	MTL	QTY.
TITLE: 20'x8'x9'6" ROOF ASSEMBLY
---	---	---	---	---	---

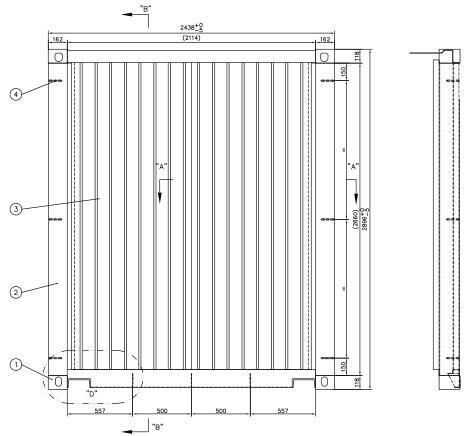

OWNED BY:	CONTAINER		SCALE:	1:30	SIZE: A3
DESIGNED BY:	Jun 18,2011		WEIGHT:	KG	QTY:
CHECKED BY:	Jun 18,2011		DWG No.: CT4TH-BB00X
APPROVED BY:	Jun 18,2011
SHEET 1 OF 1	SHEETS		ISSUE:	17A-00

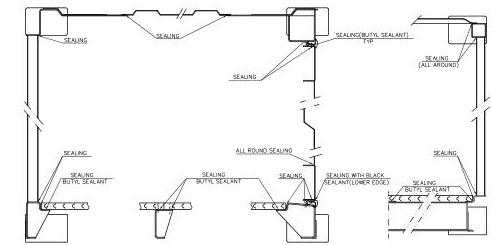

NOTE: NOT SPECIFIED INSIDE ARE WATERBORNE SEALANT.


TITLE: 20"x8"x9"6" APPLICATION OF SEALANT
OWNED BY:
DESIGNED BY:
CHECKED BY:
APPROVED BY:
SHEET 1 OF 1

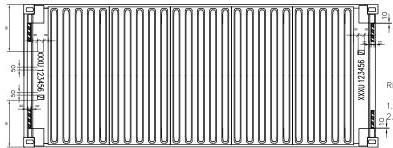

RIGHT SIDE WALL INSIDE

REMARK

DECAL WARRANTY: 7 YEARS
EXTERIOR COLOUR: RAL XXXX

REAR END BOTTOM CORNER FITTING 1:8

DETAIL 10 1:8

15	PRINT DECAL	CTX7-918001	BLACK ON WHITE	1
15	MATERIAL LIST MARK	CTX7-917001	BLACK ON WHITE	1
14	OMENSON MARK	CTXH-915001X	BLACK ON WHITE	1
13	CORTEN MARK		BLACK ON YELLOW	1
12	OWNER'S CODE SERIAL NO.		KISSCUT	1
11	WARNING MARK		BLACK ON YELLOW	12
10	HEIGHT MARK		BLACK ON YELLOW	2
9	SIZE TYPE CODE		KISSCUT	2
8	OWNER'S CODE SERIAL NO.		KISSCUT	3
7	DOOR LOGGETHE COLOR IS SAME	AS ISO LOGG	BLACK/WHITE ON BLUE	1
6	WEIGHT & CAPACITY MARK		KISSCUT	1
5	SIZE TYPE CODE		KISSCUT	1
4	OWNER'S CODE SERIAL NO.		KISSCUT	3
3	CLASS EMBLEM		DECAL	1
2	BLIND RIVET OB/IT 12618	#4.0X6	SIM(0)00(00)00	6

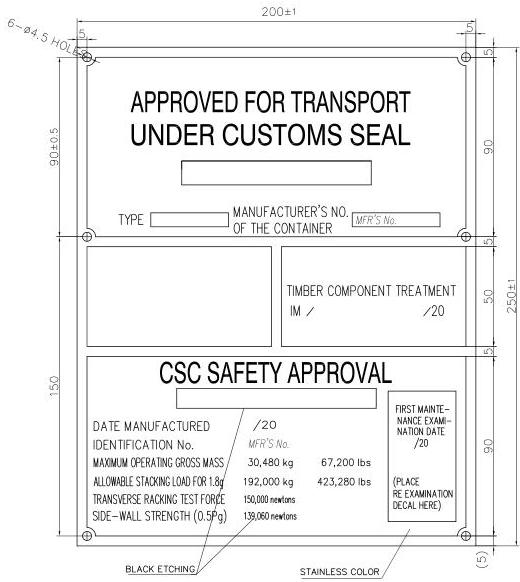

1	CONSOLIDATED DATA PLATE	CTXH-7001X	STAINLESS STEEL	1
NO.	DESCRIPTION	DWG NO.	MTL	QTY.

TITLE: 20"x8"x9"6" ARRANGEMENT OF MARKING

OWNED BY:	CONTAINER	DEALS:	1:40	SIZE:
DESIGNED BY:	Sep.28,2017	WEIGHT:	KG.1	QTY.:
CHECKED BY:	Sep.28,2017	DWG No.:	CTXH-7000X
APPROVED BY:	Sep.28,2017
SHEET 1 OF 1	SHEETS	ISSUE:	17A-00

NOTE: MTL: STAINLESS STEEL(10.8)

TITLE: 20'x8'x9'6" CONSOLIDATED PLATE
OWNED BY: CONTAINEX		SCALE: 1:1		SIZE: A4
DESIGNED BY:	Sep. 28, 2017	WEIGHT: KG. QTY.:
CHECKED BY:	Sep. 28, 2017	DWG No.: CTXH-7001X
APPROVED BY:	Sep. 28, 2017
SHEET 1 OF 1 SHEETS		ISSUE: 17A-00
MT'L
BLANKING DIMENSION
PCS UNIT
PCS CONTR
WEIGHT(Kg)
UNIT
TOTAL
SURFACE TREATMENT
REMARKS
DECAL
95x130
1
1
BLACK LETTER
95
SPECIFICATION DECAL
ITEM	DIMENSION
---	---
External	Metric: 6,058 mm
English: 19 ft 10½ in (238 ½")
Length	Metric: 6,058 mm
English: 19 ft 10½ in (238 ½")
Width	Metric: 2,438 mm
English: 8 ft 0 in (96")
Height	Metric: 2,896 mm
English: 9 ft 6 in (102")
Internal (minimum)	Metric: 5,898 mm
English: 19 ft 4-13/64 in
Length	Metric: 5,898 mm
English: 19 ft 4-13/64 in
Width	Metric: 2,352 mm
English: 7 ft 8-19/32 in
Height	Metric: 2,698 mm
English: 8 ft 10-15/64 in
Door opening (minimum)	Metric: 2,340 mm
English: 7 ft 8-1/8 in
Width	Metric: 2,340 mm
English: 7 ft 8-1/8 in
Height	Metric: 2,698 mm
English: 8 ft 10-15/64 in
Door opening (minimum)	Width: 2,340 mm
Width: 2,340 mm
Width: 7 ft 8-1/8 in
Height	Width: 2,585 mm
Width: 2 ft 8 ft 5-49/64 in
Cubic Capacity	Cubic Capacity: 37.4 Cu.m
Cubic Capacity: 1,320 Cu.ft
Tare Wt.	Tare Wt.: 2,100 Kg
Tare Wt.: 4,630 lb
Max. Payld	Max. Payld: 28,380 Kg
Max. Payld: 62,570 lb
Max. Gr. Wt.	Max. Gr. Wt.: 30,480 Kg
Max. Gr. Wt.: 67,200 lb
WHITE BACKGROUND
DRAWN BY	DESIGNED BY	CHECKED BY	APPROVED BY	DIMENSION MARK FOR 20'HC
---	---	---	---	---
SCALE 1:4	DATE 20110618	OWNER:
MODEL:		DRG. NO.: CTXH-915001X
340

| MATERIAL LISTS FOR

CTXU-CONTAINERS
PARTS	MATERIAL	SYMBOL
ROOF:
ROOF PANEL	CORTEN STEEL or eq
atmospheric corrosion resistant steel	JIS: SPA-H
SIDE:
SIDE PANEL	CORTEN STEEL or eq.	JIS: SPA-H
TOP SIDE RAIL	atmospheric corrosion resistant steel
VENTILATOR	A.B.S.	JIS: S25C
LASHING RING	FORGING STEEL OR EQ.
FRONT END FRAME:
FRONT PANEL	CORTEN STEEL or eq.	JIS: SPA-H
FRONT CORNER POST	atmospheric corrosion resistant steel
FRONT TOP RAIL(U/L)
FRONT BOTTOM RAIL(U/L)	CASTING STEEL	JIS: SCV480
CORNER FITTING
REAR END FRAME:
REAR CORNER POST(O)	CORTEN STEEL or eq.	JIS: SPA-H
DOOR HEADER(U/L)	atmospheric corrosion resistant steel
DOOR SILL
DOOR CROSS MEMBER
DOOR EDGE MEMBER
REAR CORNER POST(I)	HI-TEN STEEL	JIS: SM4901A
DOOR:
DOOR PANEL	CORTEN STEEL or eq.	JIS: SPA-H
LOCKING BAR	atmospheric corrosion resistant steel
HINGE	HI-TEN STEEL TUBE	JIS: STK400
LOCKING STEEL	FORGING STEEL or eq.	JIS: S25C
HINGE PIN	FORGING STEEL or eq.	JIS: S20C
HANDLE HUB RIVET	STAINLESS STEEL	JIS: SUS304
GASKET RETAINER
DOOR GASKET	E.P.S.M.
BASE:
BOTTOM SIDE RAIL	CORTEN STEEL or eq.	JIS: SPA-H
CROSS MEMBER	atmospheric corrosion resistant steel
FORKLIFT POCKET
FLOOR BOARD	BAMBOO-WOOD	T=20MM

WHITE

BLACK

140	PAINT SYSTEM PAINT NAME
	EXTERIOR:
	EPOXY ZINC RICH PRIMER		XXXXXXXXXXXXX
	WB EPOXY ZINC RICH PRIMER		XXXXXXXXXXXXX
	WB EPOXY OR ACRYLIC MIDDLE COAT		XXXXXXXXXXXXX
	WB ACRYLIC TOP COAT		XXXXXXXXXXXXX
	INTERIOR:		(to be nominated by each single contract)
	EPOXY ZINC RICH PRIMER		XXXXXXXXXXXXX
	WB EPOXY ZINC RICH PRIMER		XXXXXXXXXXXXX
	WB EPOXY OR ACRYLIC TOP COAT		XXXXXXXXXXXXX
	BASE:
	EPOXY ZINC RICH PRIMER		XXXXXXXXXXXXX
	WB EPOXY ZINC RICH PRIMER		XXXXXXXXXXXXX
WB UNDERCOATING		XXXXXXXXXXXXX
PAINT MFR'S NAME:		XXXXXXXXXXXXX

COLOR: BLACK ON WHITE


DRAWN BY	DESIGNED BY	CHECKED BY	APPROVED BY	PAINT LIST MARK
SCALE	DATE
20170612	OWNER:		DRG. NO.: CTXT-918001
		MODEL:

Did this answer your question?

OWNED BY: CONTAINER	SCALE: 1:32	SIZE: A3
DESIGNED BY: Top 28,2017	WEIGHT: KG	QTY:
CHECKED BY: Top 28,2017	DWG No.: CTX TH-2000X
APPROVED BY: Top 28,2017
SHEET 1 OF 1: SHEETS (ISSUE) 17A-00


DRAWN BY	DESIGNED BY	CHECKED BY	APPROVED BY	20'GP&20'HC
PAINT LIST MARK
SCALE :	DATE :	OWNER :		DWG. NO :
CTXT-917001
		MODEL :
140
