Architectural Metalwork

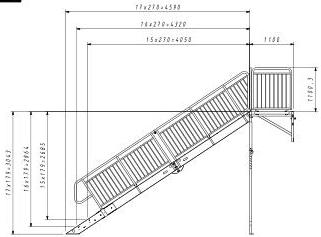

VAR 28-1.1 Railing standard type Distributed load - 3kN/m2 Painf load - 1.5kN 1200x2801mm

Notes:

  1. Execution class: EXC2
  2. Steps: grating: 280x1000 OFF SHORE TYPE AP40
  3. Rails: standard
  4. Landing: grating 240x2802 OFF SHORE TYPE AP40
  5. Steel grades: S355, S235 for grating as per EN 10025
  6. Structure treated as per EN ISO 13920, class C and G
  7. Surface preparation Sa 2 1/2 as per ISO 9501
  8. Zinc coating: hot dig galvanized coating as per EN ISO 146

Foundation level of stairs and container need to be the same

Foundation missing to container height
Container heightDistance x
22002200
28002200
29004000
All foundations dimensions: 300x300x1100mm
