GTX CONTAINEX

Assembly instruction internal staircase

Fitting of external covering profile between Ground and First floor

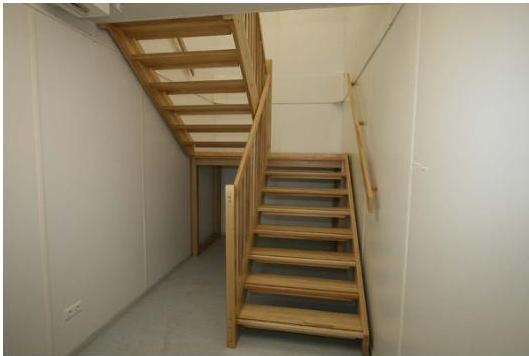

Staircase ready for fitting

Staircase breakthrough GTX CONTAINEX

Assembly of platform

4 pieces of 6 x 80 mm screws

Setting of the first staircase part

Stair string aligned with platform

Stair piece screwed with 1 no. 6 x 80 mm screw

Insulate floor and roof frame

Fitting of condensation sheet GTX CONTAINEX

Seal foil air-tight

Cover plates

Drilling of holes using 4,5 mm drill

Fastening of cover plates with 4,5 x 30 mm screws

Fastening of H-profile on covering plates

Cut out the recess in the cover plate for the floor fames and fit

GTX CONTAINEX

Cut outs for the sheet steel corner plate in the covering plates

Adjusting of the cover plates

Fitting of the corner trims

Fitting of the end profile on the first floor with Silicon

Hand rail post to be mounted on the top stair, watch the alignment

2 pieces of $6 \times 80 \mathrm{~mm}$ screws GTX CONTAINEX

2 pieces of screws 6 x 80 mm

Positioning of top stair run

1 piece screw 6 x 80 mm

Removal of the transport protection from the hand rails

Positioning of the centre post

3 pieces of screws 6 x 80 mm

Fastening of the hand rail frame with 2 pieces 6 x 80 mm screws GTX CONTAINEX

2 pieces of 6 x 80 mm screws on the centre post

Fastening with screws 6 x 100 mm on the stair string

Positioning and fastening of the balustrade with 5 pieces of screws 6 x 120 mm

Fastening of the newel with 5 pieces 6 x 120 mm screws and the bottom rail frame

Platform fastened with the delivered distance pieces onto the wall panels with 6 x 120 mm screws CTA CONTAINEX

Hand rail fastened 100 cm above rail string with the delivered distance pieces on the walls with 3 screws 6 a 120 mm for each rail

Fastening of the platform with 4 pieces 6 a 100 mm screws
