VAR.10_Railing_1.1.pdf

TLC

Architectural Metalwork

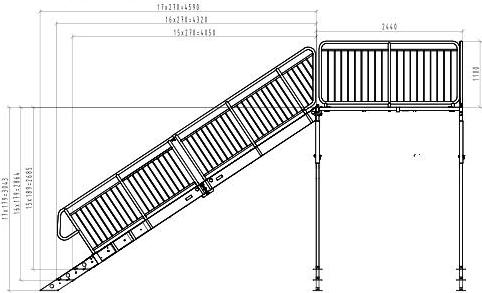

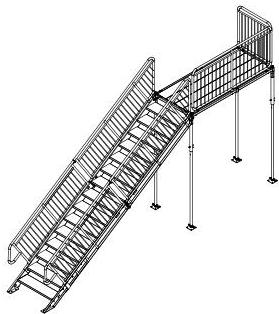

VAR.10 Railing 1.1 standard type

Distributed load - 2kN/m2

Point load - 1,5kN (50x50)mm

Notes:

  1. Execution class: EXC2
  2. Steps: grating 280x1100 OFF SHORE TYPE AP40
  3. Rails: standard
  4. Landing: grating 250x1100 OFF SHORE TYPE AP40
  5. Steel grades: S355, S235 for grating as per EN 10025
  6. Structure teasted as per EN ISO 13920, class C and G
  7. Surface preparation: Sa 2 1/2 as per ISO 8501
  8. Zinc coating: hot dip galvanized coating as per EN ISO 1461

Foundation level of stairs and container need to be the same

Foundations according to container height
Container heightDistance L
26903900
28004170
29604440
