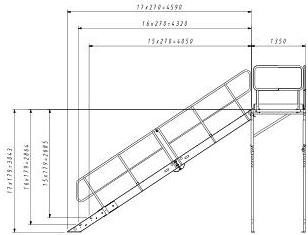

VAR 23-1.2 Railing industrial type Distributed load - 36N/M2 Point load - 1.5kN (200x200)mm

Notes:

  1. Execution class: EAC3
  2. Steps: grating: 280x1250 OFF SHORE TYPE AP40
  3. Rails: Industrial
  4. Landing: grating 240x2092 OFF SHORE TYPE AP40
  5. Landing: grating 240x1250 OFF SHORE TYPE AP40
  6. Steel grades: S355, S235 for grating as per EN 10925
  7. Structure treated as per EN ISO 10920, class 5 and G
  8. Surface preparation Sa 2 1/2 as per ISO 6501
  9. Zinc coating: not dip galvanized coating as per EN ISO 1401

Foundation level of stairs and container need to be the same

Foundation according to container height
Container heightDistance L
23002000
28002200
23604000
ALL foundations dimensions: 300x300x1100mm
