Var28_1,25_FSG.pdf

TLC

Architectural Metalwork

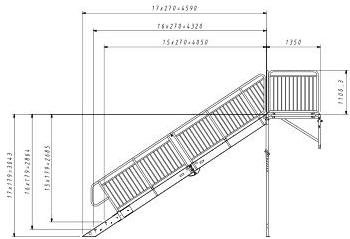

VAR 28-1,2 Railing standard type Distributed load - 3kN/m2 Paint Load - 1.5kN (200x200)mm

Notes:

  1. Execution cross: C0C2
  2. Steps: grating: 300x1350 OFF GROBE TYPE AP40
  3. Rails: standard
  4. Landing: grating 240x2002 OFF GROBE TYPE AP40
  5. Steel grades: G355, G235 for grating as per EN 10035
  6. Structure treated as per EN ISO 13920, cross C and G
  7. Surface preparation Sa.2.1/2 as per ISO 8501
  8. Zinc coating: Not dip galvanized coating as per EN ISO 146

Foundation level of stairs and container need to be the same

Foundation according to container height
Container heightDistance L
23002000
28002200
33004000
All foundations dimensions: 300x300x150mm
