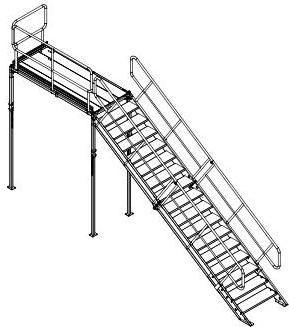

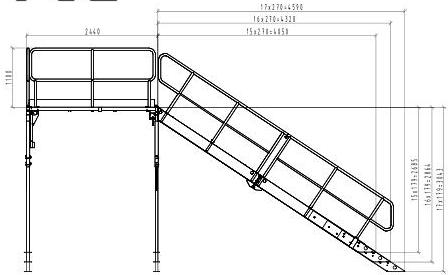

VAR.4 Railing 1.1 industrial type

Distributed load - 3kN/m2

Point load - 2kN (50x50)mm

Notes:

  1. Execution class: EXC2
  2. Steps: grating: 280x1000 OFF SHORE TYPE AP40
  3. Rails: Industrial
  4. Landing: grating 250x1000 OFF SHORE TYPE AP40
  5. Steel grades: S355, S235 for grating as per EN 10025
  6. Structure tested as per EN ISO 13920, class C and G
  7. Surface preparation Sa 2 1/2 as per ISO 8501
  8. Zinc coating: hot dip galvanized coating as per EN ISO 1461

Foundation level of stairs and container need to be the same

Foundations according to container height
Container heightDistance L
25003930
28004200
29004470
All foundations dimensions: 300x300x1100mm
