Var21_1,25_IG.pdf

TLC

Architectural Metalwork

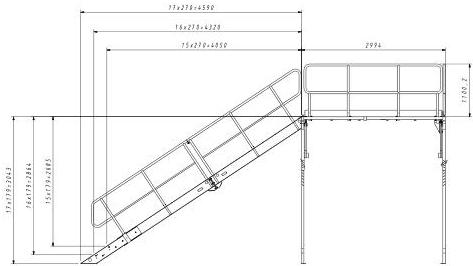

VAR 21-1,2 Railing industrial type

Distributed load - 3kN/m2

Point load - 1.5kN (200x200)mm

Notes:

  1. Execution class: E022
  2. Stepo: grating 200x1250 OFF SHORE TYPE AP40
  3. Rails: industrial
  4. Landing: grating 240x2092 OFF SHORE TYPE AP40
  5. Steel grades: S355, S205 for grating as per EN 15025
  6. Structure treated as per EN ISO 13920, class C and G
  7. Surface preparation 5x 2 1/2 as per ISO 8501
  8. Zinc coating: Ref dip galvanized coating as per EN ISO 7401

Foundation level of stairs and container need to be the same

Foundations according to container height
Container heightDistance 1
32003000
30004500
72003570
All foundations dimensions: 500x500x1150mm
