VAR.6 Railing 1.2.pdf

TLC

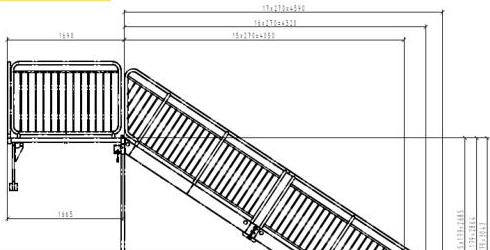

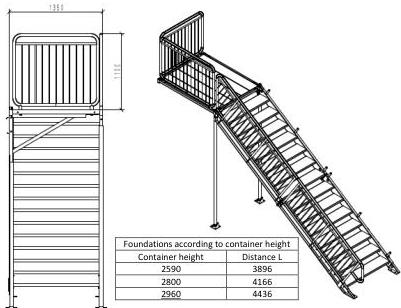

VAR.6 Railing 1.2

Distributed load - 2kN/m2

Point load - 1.5kN (50x50)mm

Notes:

  1. Execution class: EXC2
  2. Steps: grating: 250x1000 OFF SHORE TYPE AP40
  3. Rails: Children safe
  4. Landing: grating 250 OFF SHORE TYPE AP40
  5. Steel grades: S355, S235 for grating as per EN 10025
  6. Structure treated as per EN ISO 13920, class C and G
  7. Surface preparation Sa ½ as per ISO 8501
  8. Zinc coating: hot dip galvanized coating as per EN ISO 1461
