VAR.7_Railing 1.1 industrial type.pdf

TLC

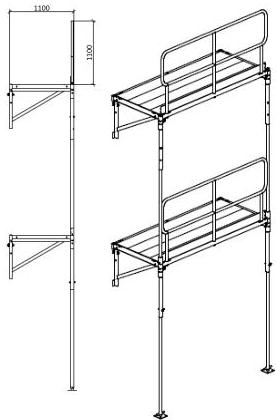

VAR.7 Railing 1.1 industrial type

Distributed load – 2kN/m2 Point load – 1.5kN (50x50)mm

Notes:

  1. Execution class: EXC2
  2. Steps: grating: 280x1000 OFF SHORE TYPE AP40
  3. Rails: Industrial
  4. Landing: grating 250 OFF SHORE TYPE AP40
  5. Steel grades: S355, S235 for grating as per EN 10025
  6. Structure treated as per EN ISO 13920, class C and G
  7. Surface preparation Sa 2 1/2 as per ISO 8501
  8. Zinc coating: hot dip galvanized coating as per EN ISO 1461

Foundation level of stairs and container need to be the same


CC

TLC sp. z o.o. ul. Chopina 25N 38-300 Gorlice e-mail: info@tlc.eu www.tlc.eu

Info: +48 505 140 140 Tel.: +48 18 534 47 99 REGON: 140313868 NIP: 525-23-48-828 KRS: 0000245912

TLC Group: Inter TLC AB, Inter TLC Ltd, TLC Sp. z o.o., TLC Rental Sp. z o.o. Sąd Rejonowy dla Krakowa Śródmieścia w Krakowie, XII Wydział Gospodarczy KRS. Kapitał zakładowy: 561 816 złotych. Konto: Alzor Bank 84 2490 0005 0000 4530 6112 0792
