ISO 20'DV One Way Container - CTX techn. Skizzen.pdf

5/12/2026

CTX CONTAINEX

TECHNICAL DRAWINGS

FOR

20' X 8' X 8'6" ISO 1CC TYPE STEEL DRY CARGO CONTAINER

WITH

ALL SPA-H (FULL CORTEN)

WITH

CORRUGATED DOOR CORRUGATED ROOF 1 PAIR OF FORKLIFT POCKET 2 VENTILATORS BAMBOO FLOOR LOCK BOX

SPECIFICATION NO.: CTX20DVL and CTX20DVL-PU G. A. DRAWING NO.: CTXT-100000 ISSUE ON: 20091224 including

Name of the drawing	Number of the drawing
1) General Assembly T-1000
2) Base Assembly T-2000
3) Front Assembly ST-3000
4) Rear Assembly T-4000
5) Side Assembly ST-5000
6) Roof Assembly T-6000
7) Door Assembly T-7000
8) Floor Assembly T-8000
9) Arrangement of Marking	T-9000

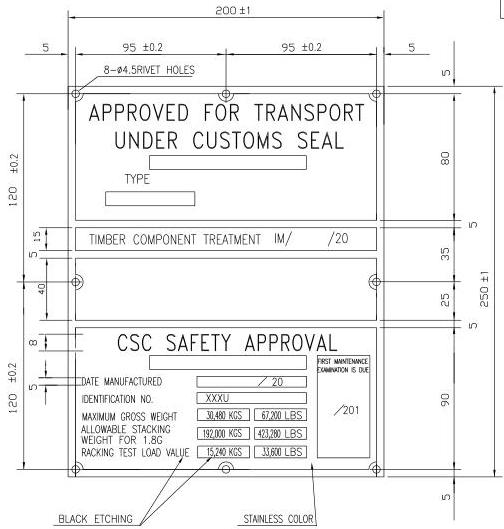

10) Consolidated Plate T-9001

SECTION "C"-"C"

PRINCIPAL PARTICULAR
MAX. GROSS WEIGHT		30480 KG	67200 LBS
TARE WEIGHT		2130 KG	4695 LBS
MAX. CARGO WEIGHT		26350 KG	62505 LBS
CUBIC CAPACITY		33.2 GP	1173 FT F
STACKING CAPACITY/POST		66400 KG	190500 LBS
RACKING TEST LOAD		15240 KG	33600 LBS
FLOOR TEST LOAD		7260 KG	16000 LBS
EXTERNAL	HEIGHT	8"-6"	2591 MM
	WIDTH	8"	2438 MM
	LENGTH	19"-10 1/2"	6058 MM
INTERNAL	HEIGHT	7"-10 14/64"	2393 MM
	WIDTH	7"-8 19/32"	2352 MM
	LENGTH	19"-4 13/64"	5898 MM
DOOR OPENING	HEIGHT	7"-5 49/64"	2260 MM
	WIDTH	7"-6 1/8"	2340 MM
CONTAINER
---	---	---	---
DRAWN BY	DESIGNED BY	CHECKED BY	APPROVED BY
SCALE : 1:1; 5:1	DATE : 20091224	DRAWN :
		MODEL :

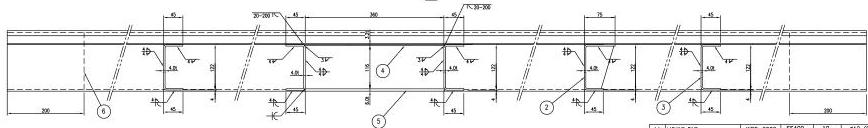

SECTION "B"-"B"

SECTION "C"-"C"

DETAIL "D"

11	JASMINE RING	WGD-2002	SSW05	10	#12 (C.Z.P.)
10	HOW DOOR HOLDER	WGD-2001	SSW00	2	#8 (E.Z.P.)
6	BRIST PLATE-ONES MOWER LARGE	SS-2009	SPA-H	6	4.0t
8	FLOOR RETAINER	ST-2008	SPA-H	2	SETG
7	FLOOR SPACER	ST-2007	SPA-H	1	SET
6	BASE GUIDET	SS-2006	SPA-H	4	4.0t
5	BOTTOM PLATE-FORM POCKET	ST-2005	SPA-H	4	6.0t
4	TOP PLATE-FORM POCKET	ST-2004	SPA-H	2	3.3t
3	CROSS MEMBER SMALL	SS-2003	SPA-H	16	4.0t
2	CROSS MEMBER LARGE	SS-2002	SPA-H	2	4.0t
1	BOTTOM SEE RAL	ST-2001	SPA-H	2	4.0t
NO	ITEM	DWG. NO.	MTL	QTY	REMARKS
CONTAINERS
---	---	---	---	---	---

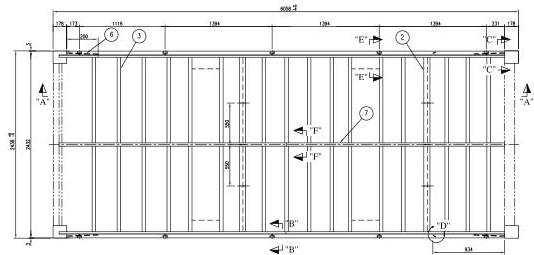

DRAWN BY	DESIGNED BY	CHECKED BY	APPROVED BY	207 BASE ASSEMBLY
SCALE :	DATE :	OWNER :		DWG. NO : T-2000
	20091224	MODEL :

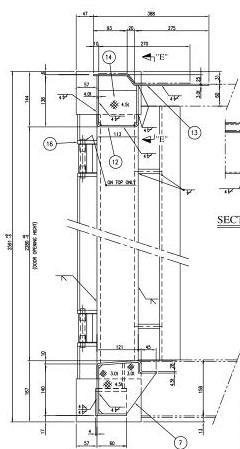

SECTION "E"-"E"

DETAIL OF "C"

DETAIL OF "D"

17	BUSCHING PLATE--CORNER POST	SS--3013	SPA--H	2	8.0X
16	BUSCHING PLATE--CORNER POST	SS--3012	SPA--H	2	8.0X
15	LESHING BAR	WGS--3903	SS400	4	ZINC. PLATED
14	FRONT PANEL	ST--3011	SPA--H	2	1.8X
13	TOP END RML OUTER	ST--3010	SPA--H	1	3.0X
12	TOP END RML WMER	SS--3009	SPA--H	1	60x60x5.0X
11
10	BUSCHING PLATE	ST--3007	SPA--H	2	4.0X
9	BUSCHING PLATE	ST--3008	SPA--H	2	4.0X
8	FLUOR SUPPORT ASS'Y	SS--3005	SPA--H	2	LH & RH
7	BOTTOM END RML STATIONER	ST--3004	SPA--H	4	4.0X
6	BOTTOM END RML	ST--3003	SPA--H	1	4.0X
5	CONC DAMAGE PROTECTOR	ST--3002	SS400	2	200x75x9.0X
4	CORNER POST,RH	ST--3001	SPA--H	1	8.0X
3	CORNER POST,LH		SPA--H	1	8.0X
2	CORNER CASTING UPPER	WGS--3902	SCW 480	2	LH & RH
1	CORNER CASTING LOWER	WGS--3901	SCW 480	2	LH & RH
NO	ITEM	DWG. NO.	MTL	QTY	REMARKS
CONTAINERS
---	---	---	---	---	---

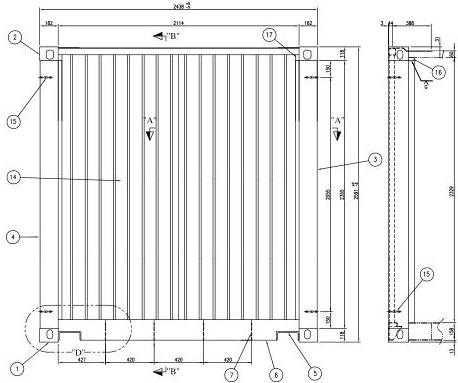

DRAWN BY	DESIGNED BY	CHECKED BY	APPROVED BY	BY FRONT ASSEMBLY
SCALE :	DATE : 20091224	OWNER :		DWG. NO : ST-3000
		MODEL :

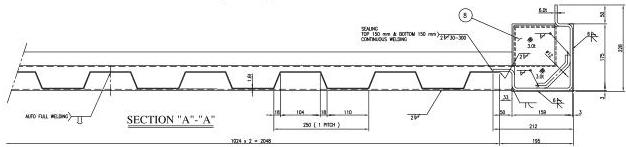

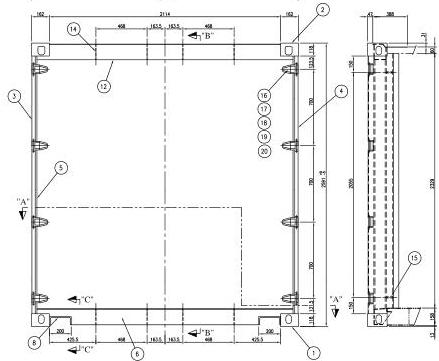

SECTION "A"-"A"

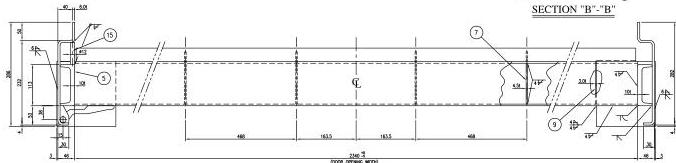

SECTION "B"-"B"

SECTION "C"-"C"

VIEW "D"

00	HINGE BLKKE	WGG-4002	S350	8	ZINC-PLATED
10	HINGE BASHER		BC6	8
16	HINGE PIN		SUS304	8
17	HINGE BUSH		KHU36	16
16	HINGE LUG		SS400	16	ZINC-PLATED
15	LADHING BAR	WGG-4001	SS400	4	ZINC-PLATED
14	BIER HEADER DIFFENER	SG-4011	SP4-H	4	4.5t
12	BIER HEADER UPPER	ST-3010	SP4-H	1	3.0t
12	BIER HEADER LOWER	ST-4008-F	SP4-H	1	4.0t
11	BOTTOM CORNER SPACER	SG-4012	SP4-H	2	6.0t
10	BLOCKING PLATE	SG-4007	SP4-H	2	3.0t
9	BLOCKING PLATE	SG-4006	SP4-H	2	3.0t
8	CINE DIMAGE PROTEZOR	SG-4005	SS400	2	200x75x9.0t
7	BIER SLL DIFFENER	SG-4004	SP4-H	4	4.5t
6	DOOR SELL	ST-4003-F	SP4-H	1	4.5t
5	CORNER PODI RINER	ST-4002-F	SM490ht	2	11.5x40x10t
4	CORNER PODI SUS304	ST-4001-F	SP4-H	1	6.0t
3	CORNER PODI SUS304		SP4-H	1	6.0t
2	CORNER CADING UPPER	WGG-3002	SCW480	2	LH & RH
1	CORNER CADING LOWER	WGG-3001	SCW480	2	LH & RH
NO	ITEM	DRG. NO.	MTL	QTY	REMARKS
CTA CONTAINERS
---	---	---	---	---
GRAINS (2)	DESIGNED BY	CHECKED BY	APPROVED BY	DY
SCALE :	DATE :	OWNER :		REAR ASSEMBLY
	20091224	WITNESS :

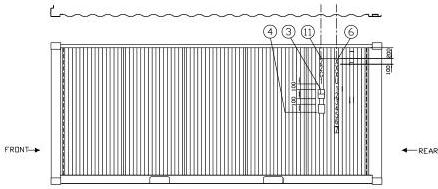

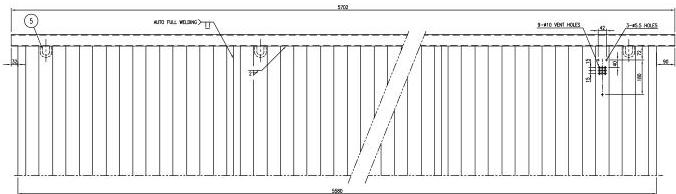

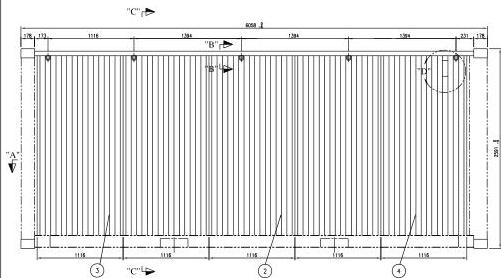

L/H SIDE VIEW (R/H SIDE OPPOSITE)

SECTION "C"-"C"

DETAIL "D"

SECTION "B"-"B"

SECTION "A"-"A"

DETAIL OF VENT HOLES

7	HUCK BELT	#60-5003	AL.	3x2	#5.0
6	VENT COVER	#60-5001	A.B.S	1x2	SMALL
5	LASHING RING	#60-2003	SS400	5x2	#12 (E.Z.P.)
4	END PANEL (VENTILATORS)	ST-5004	SPA-11	1x2	2.0t
3	END PANEL	ST-5003	SPA-11	1x2	2.0t
2	MID PANEL	ST-5002-F	SPA-11	3x2	1.6t
1	TOP SIDE RML	ST-5001	SPA-11	1x2	60x60x3.0t
NO	ITEM	DWG. NO.	MTL	QTY	REMARKS
STA CONTAINERS
---	---	---	---	---
DRAWN BY	DESIGNED BY	CHECKED BY	APPROVED BY	BY
SIDE ASSEMBLY
SCALE :	DATE :	DWAGER :		DWG. NO : ST-5000
21; 51; 161	20080417	MODEL :

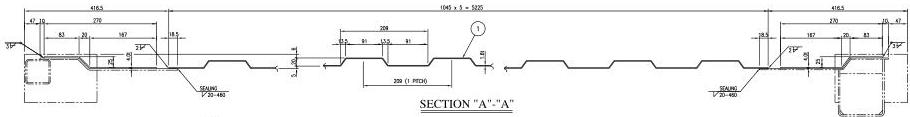

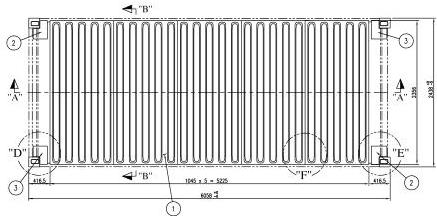

SECTION "B"-"B"

DETAIL "D"

DETAIL "E"

DETAIL "F"

3	REINFORCEMENT PLATE, REPL		50-6002	SPA-H	2	4.0t
2	REINFORCEMENT PLATE, RE/PR		50-6001	SPA-H	2	4.0t
1	ROOF PANEL		WHO-6001	SPA-H	5	1.8t
NO	ITEM		DRHQ. NO.	MTL	QTY	REMARKS
CITTA CONTAINEX
---	---	---	---	---	---
DRAWN BY	DESIGNED BY	CHECKED BY	APPROVED BY	20' ROOF ASSEMBLY
SCALE :	DATE :	OWNER :		DWG. NO : T-6000
		MODEL :

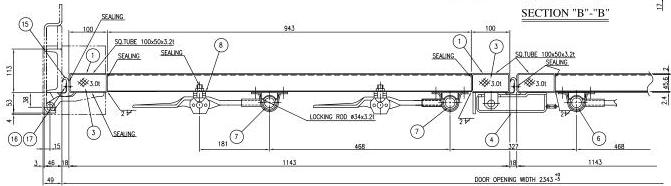

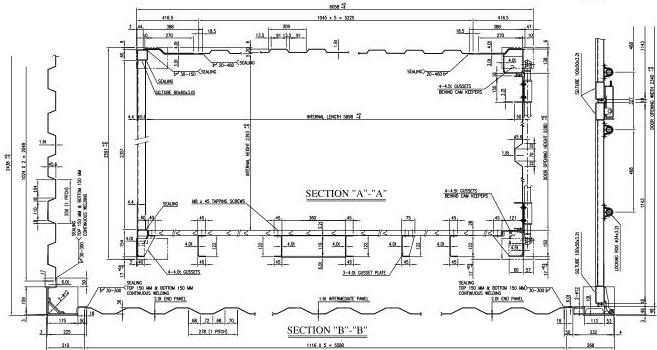

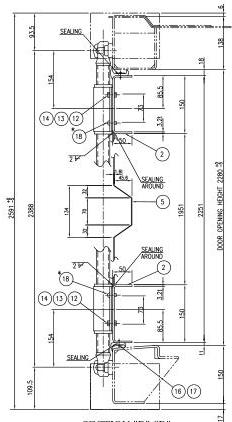

SECTION "A"-"A"

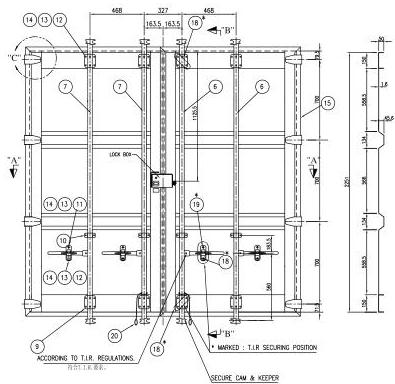

NOTE : 1. SEALANT IS APPLIED TO DOOR GASKET AND HARDWARES BEFORE SETTING 2. *MARK ARE TO BE USED HUCK BOLT ACCORDING TO TIR REGULATIONS 3. THE LOOKING DEVICES TO BE INSTALLED AFTER THE CONTAINER IS PAINTED 4. DOOR LOOKING DEVICES 5. THE LOOKING DEVICES, BOLTS, NUTS, WASHER, HUCK BOLTS AND COLLARS ARE NOT DIPPING GALVANIZED

20	HIGH DOOR HOLDER	WGG-7013	HYLON	2
19	HUCK BOLT & COLLAR	WGG-7012	H10X16	1 GALVANIZED
18	HUCK BOLT & COLLAR	WGG-7011	H10X8	5 GALVANIZED
17	BLIND RIVER	WGG-7010	300000000	77 44.8 x 15
16	GASKET RETAINER KEY	WXY-7009-F	SUS 30X	1 SET 1.0t
15	DOOR GASKET ASS'Y	WGY-7008-F	E.P.D.M	1 SET
14	SPRING WASHER	WGG-7007	DARKI 32	42 GALVANIZED
13	NUT	WGG-7006	SS400	42 M10 (GALV.)
12	BOLT	WGG-7005	SS400	39 M10 x 20 (GALV.)
11	BOLT	WGG-7004	SS400	3 M10 x 20 (GALV.)
10	PACKING-BRACKET SMALL	WGG-7003	E.P.D.M	4 3.5t
9	PACKING-BRACKET LARGE	WGG-7002	E.P.D.M	8 1.0t
8	PACKING- HANDLE RETAINER	WGG-7001	E.P.D.M	4 3.5t
7	DOOR LOOKING DEVICES	STF-7007	---	2 GALVANIZED
6	DOOR LOOKING DEVICES	STF-7006	---	2 GALVANIZED
5	DOOR PANEL (LH/RH)	STF-7005	SPA-H	1+1 1.8t
4	LOCK BOX	DSB-00100		1
3	D.E.M BLOCKING PLATE	SG-7003	SPA-H	8 3.0t
2	DOOR RAIL (LH/RH)	SG-7002A	SPA-H	2+2 3.2t
1	DOOR EDGE MEMBER	ST-7001-F	SPA-H	4 100x50x3.2t
NO	ITEM	DWG. NO.	MT%	QTY
GALVANIZED CONTAINER
---	---	---	---	---
DRAWN BY	DESIGNED BY	CHECKED BY	APPROVED BY	DOOR ASSEMBLY
SCALE :	DATE :	OWNER :		DWG. NO : T-7000
		MODEL :

DETAIL "C"

DETAIL "D"

NOTE :

TIMBER TREATMENT IS IN ACCORDANCE WITH AUSTRALIAN DEPARTMENT OF HEALTH REGULATION
FLOOR ASS'Y MUST BE WATER TIGHT
SEALANT : (1) HIDDEN PARTS : BUTYL TYPE (2) EXPOSED PARTS : CHLOROPRENE TYPE

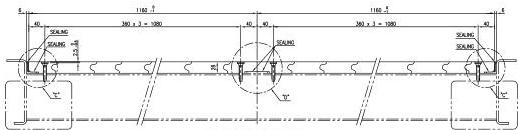

SECTION "A"-"A"

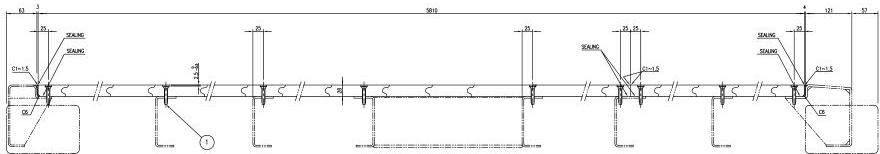

SECTION "B"-"B"

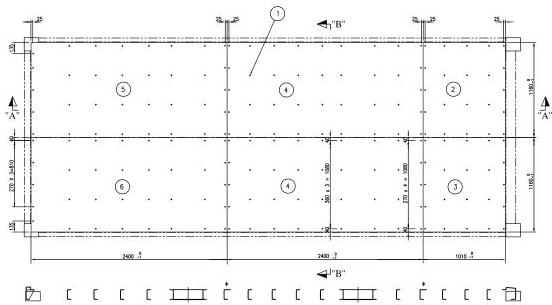

5	FLOOR PLYWOOD	WGS-8006	#R360 DI #250KG	1	2400x1160x28K
5	FLOOR PLYWOOD	WGS-8005	#R360 DI #250KG	1	2400x1160x28K
4	FLOOR PLYWOOD	WGS-8004	#R360 DI #250KG	2	2400x1160x28K
3	FLOOR PLYWOOD	WGT-8003	#R360 DI #250KG	1	1010x1160x28K
2	FLOOR PLYWOOD	WGT-8002	#R360 DI #250KG	1	1010x1160x28K
1	SELF IMPRNG SCREW	WGS-8001	SWROH 18A	18B	M8x4S
NO	ITEM	DWG. NO.	MTL.	QTY	REMARKS
CONTAINEX
---	---	---	---	---
DRAWN BY	DESIGNED BY	CHECKED BY	APPROVED BY	20° FLOOR ASSEMBLY
SCALE : 2:1; 10:1	DATE : 20091224	OWNER : MODEL :	DWG. NO : T-8000

RIGHT SIDE WALL INSIDE

REAR END BOTTOM CORNER FITTING

DETAIL 3 S:1/8

DETAIL 4 S:1/8

DETAIL 7

REMARK

DECAL WARRANTY: 7 YEARS.



CTA CONTAINER
DRAWN BY	REVISION D	CHECKED BY	APPROVED BY	20" x 8" x 8"-6" ARRANGEMENT OF MARKING
SCALE 1:30	DATE 20091224	CHECK		DWG. TO T-9000
		MARK.
MT'L	BLANKING DIMENSION	PCS / UNIT	PCS / CONTR	WEIGHT(Kg)
---	---	---	---	---
				UNIT
DECAL	95x130	1	1

130

SPECIFICATION DECAL

ITEM	DIMENSION
	Metric	English
External Length	6,058 mm	19 ft 10½ in (238 ½")
Width	2,438 mm	8 ft 0 in (96")
Height	2,591 mm	8 ft 6 in (102")
Internal (minimum) Length	5,898 mm	19 ft 4-13/64 in
Width	2,352 mm	7 ft 8-19/32 in
Height	2,393 mm	7 ft 10-14/64 in
Door opening (minimum) Width	2,340 mm	7 ft 8- 1/8 in
Height	2,280 mm	7 ft 5-49/64 in
Cubic Capacity	33.2 Cu.m	1,173 Cu.ft
Tare Wt.	2,130 Kg	4,695 lb
Max. Payld	28,350 Kg	62,505 lb
Max. Gr. Wt.	30,480 Kg	67,200 lb

WHITE BACKGROUND

CONTAINEX
DRAWN BY	DESIGNED BY	CHECKED BY	APPROVED BY	DIMENSION MARK
SCALE	DATE	OWNER:		DRG. NO.: CTXT-915001
1:4	20091224	MODEL:
340

MATERIAL LISTS FOR CTXU-CONTAINERS
PARTS	MATERIAL	SYMBOL
ROOF: ROOF PANEL	CORTEN STEEL or eq. atmospheric corrosion resistant steel	JIS: SPA-H
SIDE: SIDE PANEL TOP SIDE RAIL VENTILATOR LASHING RING	CORTEN STEEL or eq. atmospheric corrosion resistant steel A.B.S. FORGING STEEL OR EQ.	JIS: SPA-H JIS: S25C
FRONT END FRAME: FRONT PANEL FRONT CORNER POST FRONT TOP RAIL(U/L) FRONT BOTTOM RAIL(U/L) CORNER FITTING	CORTEN STEEL or eq. atmospheric corrosion resistant steel CASTING STEEL	JIS: SPA-H JIS: SCV480	BLACK
REAR END FRAME: REAR CORNER POST(O) DOOR HEADER(U/L) DOOR SILL DOOR CROSS MEMBER DOOR EDGE MEMBER REAR CORNER POST(I)	CORTEN STEEL or eq. atmospheric corrosion resistant steel HI-TEN STEEL	JIS: SPA-H JIS: SM490YA
DOOR: DOOR PANEL LOCKING BAR HINGE LOCKING DEVICE HINGE PIN HANDLE HUB RIVET GASKET RETAINER DOOR GASKET	CORTEN STEEL or eq. atmospheric corrosion resistant steel HI-TEN STEEL TUBE FORGING STEEL or eq. FORGING STEEL or eq. STAINLESS STEEL E.P.D.M.	JIS: SPA-H JIS: STK400 JIS: S25C JIS: SUS304
BASE: BOTTOM SIDE RAIL CROSS MEMBER FORKLIFT POCKET	CORTEN STEEL or eq. atmospheric corrosion resistant steel	JIS: SPA-H
FLOOR BOARD	BAMBOD	T=20MM
CTX CONTAINEX
---	---	---	---
DRAWN BY	DESIGNED BY	CHECKED BY	APPROVED BY
SCALE :	DATE :	OWNER :
		MODEL :
140

140

PAINT SYSTEM PAINT NAME

EXTERIOR: EPOXY ZINC RICH PRIMER HEMPADUR ZINC 15360 EPOXY PRIMER HEMPADUR PRIMER 1530C ACRYLIC TOPCOAT HEMPATEX 56430

INTERIOR: EPOXY ZINC RICH PRIMER HEMPADUR ZINC 15360 EPOXY TOPCOAT HEMPADUR HI-BUILD 4520C

BASE: EPOXY ZINC RICH PRIMER HEMPADUR ZINC 15360 WAXY UNDERCOATING XXX

PAINT MFR'S NAME: HEMPEL-HAI HONG (CHINA) LTD.

ACCORDING TO VIRTUALLY SELECT BRAND

COLOR: BLACK ON WHITE

C23 CONTAINEX
DRAWN BY	DESIGNED BY	CHECKED BY	APPROVED BY	PAINT LIST MARK
SCALE	DATE
20080417	OWNER:		DRG. NO.: CTXT-918001
		MODEL:
MT' L	BLANKING
DIMENSION	PCS
UNIT	PCS
CNTR	WEIGHT(kg)		SURFACE
TREATMENT	REMARK
---	---	---	---	---
				UNIT
SUS304	250X200	1	1	0.31
