Architectural Metalwork

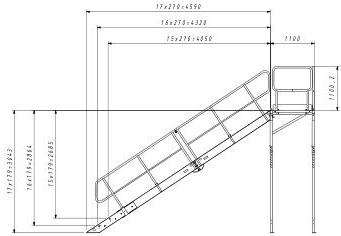

VAR 23-1.1 Railing industrial type Distributed load - 3kN/m2 Point load - 1.5kN 1200x2001mm

Notes:

  1. Evacuation class: EXC2
  2. Steps: grating: 200x1000 OFF SHORE TYPE AP40
  3. Ratio: industrial
  4. Landing: grating 240x2000 OFF SHORE TYPE AP40
  5. Landing: grating 240x1000 OFF SHORE TYPE AP40
  6. Steel grades: S255, S255 for grating as per CN 10025
  7. Structure treated as per CN ISO 13920, class C and G
  8. Surface preparation Sa 2 172 as per ISO 8001
  9. Zinc coating: hot dip galvanized coating as per CN ISO 1461

Foundation level of stairs and container need to be the same

Foundation according to container height
Container heightDistance L
22002000
20002200
23004000
All foundations dimensions: 300x300x1100mm
