Var21_1,00_FSG.pdf

TLC

Architectural Metalwork

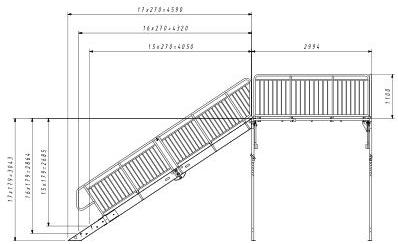

VAR 21-1.1 Railing standard type Distributed load - 3kN/m2 Point load - 1.5kN (200x200)mm

Notes:

  1. Execution class: E0C2
  2. Steps: grating: 200x1000 OFF SHORE TYPE AP40
  3. Rails: standard
  4. Landing: grating 240x2092 OFF SHORE TYPE AP40
  5. Steel grades: S355, S205 for grating as per EN 10025
  6. Structure roasted as per EN ISO 13928, class 2 and 6
  7. Surface preparation Sa 2 1/2 as per ISO 8501
  8. Zinc coating: hot dip galvanized coating as per EN ISO 1461

Foundation level of stairs and container need to be the same

Foundation according to container height
Container heightDistance L
22002000
20002200
29602960
All foundations dimensions: 300x300x100mm
