Installation Manual PD3N-1C EN.pdf
B.E.G.
LUXOMAT® PD3N-1C
EN
Installation and Operating Instruction
1. Mounting preparations
Work on the 230V mains supply may only be carried out by qualified professionals or by instructed persons under the direction and supervision of qualified skilled electrical personnel in accordance with electrotechnical regulations.
Disconnect supply before installing!
The device is not suited for safe disconnection of the mains supply.
2a. Installation of the LUXOMAT® PD3N-1C-SM
- Sensor inset
- Cover ring pluggable incl. cover for LEDs (2a)
- Blind
- SM-Socket
The detector must be installed on a solid and level surface. There is no need for frames.
2b. Installation of the LUXOMAT® PD3N-1C-FC
- Sensor inset
- Cover ring pluggable incl. cover for LEDs (2a)
- Blind
- Protection cover
- Ceiling (drill hole Ø 68 mm)
2c. Installation of the LUXOMAT® PD3N-1C-FM
- Sensor inset with mounting plate
- Cover ring pluggable incl. cover for LEDs (2a)
- Blind
- FM-Socket (not included)
2d. Self test cycle
The product enters an initial 60-second self-test cycle, when the supply is first connected. The occupancy detector is ready for operation.
3. Putting into operation / Settings
Follow-up time "Min/Sec"
The time can be set infinitely variably at between 30 seconds and 30 minutes.
Symbol: $\Pi$ impulse < 1 sec.
Symbol TEST: Test mode
(Every movement switches on the light for a period of 1 second, switching it off for a period of 2 seconds regardless of the level of brightness)
Determining the current brightness
Set potentiometer to the "Test" setting. The green LED lights up permanently as soon as the value set at the potentiometer "Lux" drops below the current measured brightness.
Wall bracket for remote control IR-PD3N
3. Putting into operation / Settings with remote control
Sensitivity/Range
Adjustment of sensitivity for reduction of range resp. for minimization of failure switching on outdoor area.

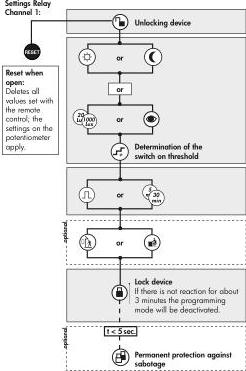

4. Settings carried out using remote control (optional)
Remote control LUXOMAT® IR-PD3N
- Check Battery: open battery compartment by pressing the plastic springs together and removing the battery-holder.
- Hardware Reset
Reset: The setting of "factory-setting" from any other position causes a "Reset" of the device. That means all operating modes activated at that time are reset to the factory setting (fast flashing of all LEDs for 5 seconds).
Caution: Settings with remote control supersede the settings by courtesy of potentiometers.
Description of the button functions
Luminance set point
Day operation: light sensor is inactive, it switches on/off regardless the light level / Night operation: very low luminance set point of approx. 10 Lux for special applications
Automatic reading in the current light value as new luminance set point
Determination of the switch on threshold
Stepwise increasing of the actual luminance set point of 20 Lux every time you push the button (50 Lux from 100 Lux)
Follow-up time / Impulse function Channel 1
Sensitivity normal / Sensitivity high
Activation of test mode in locked position
Deactivation: Press Reset
Resetting when closed
Stop a running follow up timer and switch the relays off.
Permanent protection against sabotage
This function blocks the unit permanently (green LED is illuminated for motion display). This operating mode can only be activated during the period of 5 seconds after pressing the "lock" button (white LED is flashing). The procedure for leaving this mode is to implement a Reset (see point 4) or to act as follows:
- Switch off the current
- Apply current for 31 - 59 seconds
- Switch on the current again
- Apply current
- Open detector
In the initialisation period
12h Light ON/OFF (party function)
Activated by "Light" - push button
Deactivated by "Reset" - push button (default) MAN 6719 – 240715-13
5. Manual Switching
You can switch the lighting on and off manually by pressing the pushbutton for a short time. It will stay on or off as long as people are detected plus the configured follow up time.
By pushing the button for more than 3 seconds the lighting will be switched on for 12 hours (Party program) and returns to full automatic mode after timeout.
6. Range
1 ☐ walking across 2 ☐ walking towards 3 ☐ smaller movements
7. Exclude sources of interference
In case the sensing area of the LUXOMAT® PD3N-1C is too large or areas are being covered that should not be monitored, the range can be reduced or limited by using the enclosed masking clips.
8. Article / Part no. / Accessory
| Type | SM | FC | FM |
|---|---|---|---|
| PD3N-1C | 92190 | 92196 | 92186 |
LUXOMAT® Remote control: IR-PD3N (incl. wall bracket) IR-PD-Mini 92159
Accessory: BSK Ball booklet guard 92199
9. LED-functional indicators
| LED function indicators after each mains recovery (60 sec. initialization period) | ||
|---|---|---|
| Operating state | LED function indicators | |
| Double-locked | White and green shines for 5 sec. all 20 sec., after initialising notification | |
| Indicator unprogrammed | Indicator programmed | |
| Standard mode | Red flashes | Red flashes quickly |
| 12 h ON/OFF active | Red and green flash | Red and green flash quickly |
| LED function indicators during operation | ||
| --- | --- | |
| Process | LED function indicators | |
| Motion detection | Red flashes on each detected movement | |
| Impulse mode active | Red and green flash one time all 4 sec. | |
| 12 h ON/OFF function active | Red and green flash alternately | |
| IR command | White flashes once | |
| IR command "Open" and sabotage active | White and green flash once slowly |
10. Wiring diagrams
11. Technical data PD3N-1C
Sensor and power supply in one case
Power supply: 230 V~ ±10%
Terminal clamps: for single-wire conductor
Power consumption: < 0.5 W
Ambient temperature: -25°C ~ +50°C
Degree of protection/class: SM ~ IP44; FC ~ IP23; FM ~ IP20 /Class II
Settings: via potentiometer or remote control
Area of coverage: circular 360°
Range of coverage Ø H 2.5 m / T = 18°C: smaller movements 4 m / tangential 10 m / radial 6 m
Recommended height for mounting: 2 - 3 m
Lux values: 10 - 2000 lux
• Channel 1 for light-connection
Type of contact: NOC/with protravel tungsten contact and cero crossing circuit
Contact load: 2300 W cos φ = 1 / 1150 VA cos φ = 0.5, μ Contact
Time-settings: 30 sec. - 30 min. / Test
Dimensions H x Ø [mm] SM FC FM
PD3N 53 x 106 81 x 83 63 x 106
Visible portion when built into ceiling: 34 x 106 mm
CE Declaration of Conformity: The product complies with the low voltage recommendation 2006/95/EC and the EMV recommendation 2004/108/EC.
12. Trouble shooting
- Lamp does not light up
Lamp may be defect: Replace lamps
No mains connection/power: Check connection and mains fuse by qualified electrician
Incorrect setting of CDS twilight threshold: Correct setting of CDS threshold
Lens of sensor unit obstructed by dirt or other objects: Clean lens, remove objects
- Lamp turns ON too late or detection range too small
LUXOMAT® PD3 is mounted too high: See table of mounting heights. Correct mounting if required.
- Lamp stays ON continuously
Continuous thermal activity detected ie fan, central heating ducts, animals within detection area: Remove heatsource. Check proper function of LUXOMAT® PD3N by covering the fresnel-lens. After expiry of delay timer, PD3N has to turn OFF lighting.
LUXOMAT® PD3N connected in parallel to a manual override switch: Connect switch correctly
- Unintended switching of light
Movement of heat source within detection area: Check on presence of animals, fans or heaters
