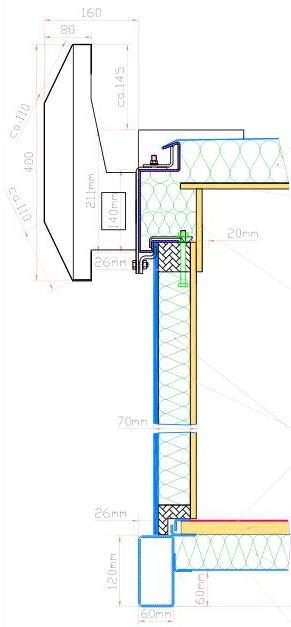

60MW-60MW-100MW-2591-EN.pdf

insulation-100mm mineral wool

white coated chipboard - 10mm

top trim

insulation - 60mm mineral wool

vinyl floor cover

floor panel

insulation-60mm mineral wool

steel sheet - 0,6mm

The transmitted CAD drawings are a schematic representation of the quotation/order.

The document(s) is (are) the intellectual property of the author CONTAINEX

Container-Handelsgesellschaft m.b.H.

AT-2355 Wiener Neudorf.

The usage is only allowed, without exception, with the explicit written permission of CONTAINEX

Container-Handelsgesellschaft m.b.H.

The transmission of the CAD file(s) onto a third party, the reproduction (copies or transcription) as well as any kind of publication are explicitly prohibited.

The recipient is permitted to graphically alter the CAD drawing(s), whereupon the results of the changes may only be sent to a third party in a read only (tomal (for example PDF or JPEG).

Non-compliance will be considered an offence under criminal and civil law and prosecuted accordingly. The recipient expressly declares his acceptance of these conditions.

• schematic drawing
• small variations on the product are possible due to production technologies and do not constitute a reason for a complaint
• subject to technical alterations
