ZK0162DE Model (1).pdf

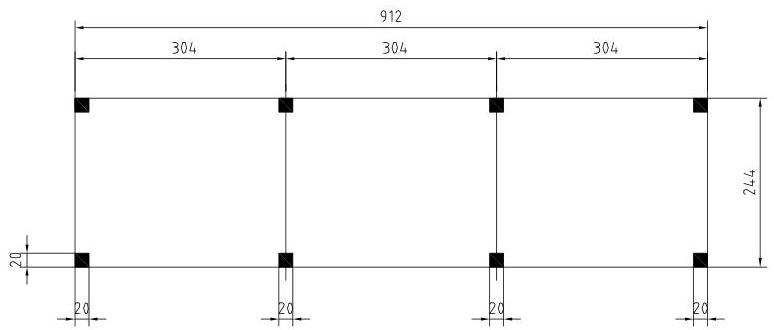

Fundamentplan
- ) alle Masse in cm
- ) Die Fundamenttiefe ist von der jew.
- Bodenstruktur abhängig
- ... mindest erforderliche Containeraufstandspunkte
| Gezeichnet von: SM Gezeichnet am: 16.11.2012 | Bitte um Bestätigung und Retournierung
Datum: Unterschrift, Pirmontsimpat | | --- | --- | | Maßstab: M 1:50 | | | Zeichnungs-Nr.: ZK0162DE | CONTAINEX |
