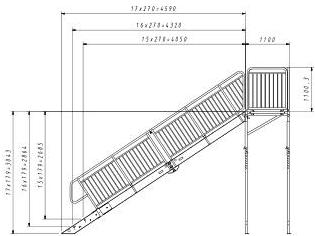

VAR 23-1,1 Railing standard type Distributed load - 3kN/m2 Point load - 1.5kN | 200x2003mm

Notes:

  1. Execution steps: EXC2
  2. Steps: grating: 200x1000 OFF SHORE TYPE AP40
  3. Rails: standard
  4. Landing: grating 240x2002 OFF SHORE TYPE AP40
  5. Landing: grating 240x1000 OFF SHORE TYPE AP40
  6. Steel grades: S255, S235 for grating as per EN 18025
  7. Structure tested as per EN ISO 13920, class C and D
  8. Surface preparation Da 2 172 as per ISO 8501
  9. Zinc coating: hot dip galvanized coating as per EN ISO 1401

Foundation level of stairs and container need to be the same

Foundation according to container height
Container heightDistance L
22002000
20002200
23004000
All foundations dimensions: 300x300x110000
