LUXOMAT® PD2-M-2C/PD2-S
GB
Installation and Operating Instruction for B.E.G. - Occupancy detector PD2-M-2C-SM/-FC/-FM
1. Mounting preparation
Work on the 230V mains supply may only be carried out by qualified professionals or by instructed persons under the direction and supervision of qualified skilled electrical personnel in accordance with electrical regulations.
Disconnect supply before installing!
The device is not suited for safe disconnection of the mains supply.
When in Master/Slave mode of operation, the Master-appliance must always be installed at the location where there is least daylight.
2a. Installation LUXOMAT® PD2-M-2C-SM
The detector must be installed on a solid and level surface. There is no need for frames. For mounting remove lens (turn anticlockwise). Fasten the mounting pod to the ceiling.
Having connected up the wires in accordance with regulations, secure the detector with 2 screws as per the illustration above. In order to assemble the detector outside, the PD2-P54 base-plate, which is available as an accessory, must be mounted between the detector and the surface on which it is to be installed.
2b. Installation LUXOMAT® PD2-M-2C-FC
A circular opening of diameter 68 mm must first of all be produced in the ceiling.
Having connected up the cables in accordance with regulations, the detector is inserted into the opening as shown in the drawing opposite and fixed into position with the assistance of the spring clip.
2c. Installation LUXOMAT® PD2-M-2C-FM
The detector can be installed in conventional inlet-sockets mounted on the ceiling.
The assembly plate enclosed must be stripped off prior to installation and secured to the ceiling using 4 screws.
Having connected up the cables in accordance with regulations, the detector can be placed in position as shown in the drawing opposite and, applying a little pressure, can then be locked into position with the assistance of the spring clips.
3a. Hardware configuration SM
Position LED's
LED 1 green
LED 2 red
LED 3 white
3b. Hardware configuration FC
Position LED's and potentiometers
Potentiometers 1 Lux Channel 1
Potentiometers 2 Time Channel 1
Potentiometers 3 Time Channel 2
3c. Hardware configuration FM
Position LED's
LED 1 red
LED 2 green
LED 3 white
4a. Position potentiometers and DIP-Switches SM
DIP 1 Fully automatic/semi automatic mode
DIP 2 LED ON/OFF
DIP 3 Change between corridor mode and standard mode
The DIP switch settings are overriden using the remote control.
4b. Position DIP-Switches FC
DIP 1 Fully automatic/semi automatic mode
DIP 2 LED ON/OFF
DIP 3 Change between corridor mode and standard mode
The DIP switch settings are overriden using the remote control.
4c. Position potentiometers and DIP-Switches FM
DIP 1 Fully automatic/semi automatic mode
DIP 2 LED ON/OFF
DIP 3 Change between corridor mode and standard mode
The DIP switch settings are overriden using the remote control.
5. DIP switch functions
Corridor function: After deactivation by an external push button, the detector switches off and returns to automatic mode after 5 sec.
The DIP settings are enabled again by:
- Adjusting the DIP switches when closed
- Reset with test sun setting at the potentiometers
- Reset when open
GB
6. Putting into operation / Settings
Self test cycle
After an initial 60-second self-test cycle, the LUXOMAT® PD2-M-2C is ready for operation.
An adhesive film for the surface of the IR-PD-2C-S is included with the device. If required, this can be used for any B.E.G. remote control with 27 keys.
In order to benefit from the whole range of functions of the PD2-M-2C, please order separately the remote control IR-PD-2C.
7. Reset and default settings
1. Default settings
If the potentiometers are in the "Test" and "Sun" position and the detector is unprogrammed, the factory program is activated: 500 lux and 10 min.
2. Reset
If both potentiometers are returned to the "Test" and "Sun" setting from any other position, a reset is executed. All values programmed with the remote control are deleted.
8. Putting into operation of the remote control IR-PD-2C (optional)
Check Battery: Open battery compartment by pressing the plastic springs together and removing the battery holder.
Caution: Settings with remote control supersede the settings by potentiometers.

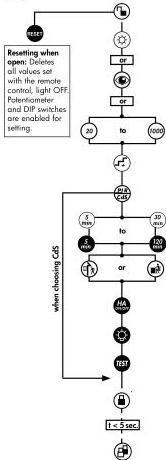

9. Settings by remote control IR-PD-2C
Unlocking device - Activation of the programming mode
Daytime operation, detector only activated by motion
Automatic reading in the current light value as new luminance set point
Luminance set point for channel 1 20 - 1000 Lux
Increase the current light level by 20 resp 50 Lux
Change between motion detector and photo electric switch
Follow-up time ch1 (light) 5 - 20 min. resp. 120 min. or impulse
Follow-up time ch2 (HVAC) 5 - 30 min. resp. 120 min. or impulse
Detection sensitivity reduced or normal
Change between fully automatic and semi automatic mode (HA)
Light ON/OFF
LED ON/OFF (by holding down the push button)
Locking device - Exit programming mode
If there is not reaction for about 3 minutes the programming mode will be deactivated.
White LED flashes
Permanent protection against sabotage
Option: Remote control IR-PD-2C
An adhesive film for the surface of the IR-PD-2C-S is included with the device. If required, this can be used for any B.E.G. remote control with 27 keys.
In order to benefit from the whole range of functions of the PD2-M-2C, please order separately the remote control IR-PD-2C.
10. Key functions in closed state
Permanent protection against sabotage
This function blocks the unit permanently. This operating mode can only be activated during the period of 5 seconds (white LED flash) after pressing the "lock" button. The procedure for leaving this mode is as follows:
- Switch off the current
- Apply current for 31 - 59 seconds
- Switch of the current again
- Apply current, wait for selftest cycle
- Open detector
Light ON/OFF during the detection of motion plus follow-up time; Activation of the 12 h-ON/OFF-function by holding down the push button
Activation/Deactivation of the test function After 3 minutes the test mode will be automatically closed.
Switches channel off and is immediately active again, exits all timers, interruption of light measurement
Confirmation
Changes to "open" state
11. Explanation of the remote control button functions
11a. In the initialisation period 12 h Light ON/OFF (party function) Activated by "Light" - push button Deactivated by "Reset" - push button (default)
Corridor function Activated by "outside" - push button Deactivate by "inside" - push button (default)
Forced shutdown Activated by "sun" - push button Deactivate by "moon" - push button (default)
11b. In opened state This push button opens the detector and the following functions can then be programmed. Attention: The detector is closed automatically:
- after every voltage recovery
- after 3 minutes
The state changes to "closed". In the first 5 seconds, the white LED flashes every 0.5 seconds. During this time, sabotage protection can be activated.
The device distinguishes between 2 procedures:
- Reading in with lighting switched on: The switch-on value is determined automatically. Determining the switch-on value:
- Press the "eye" push button
- Switch off the light (2 seconds later)
- Read in the brightness
- Switch-on value = Read brightness
- Reading in with lighting switched off: When the push button is pressed, the current brightness is specified as the switch-on value. The switch-off value is determined automatically.
If the brightness has been modified, the switch-off threshold is recalculated.
Each time the push button is pressed, the device increases the current switch-on value in increments of 20 lux for a current switch-on value of < 100 lux and in increments of 50 lux for a current switch-on value of > 100 lux.
Standard sensitivity for most applications Reduced sensitivity for outdoor applications
When the pulse function of channel 1 is active, a pulse of 1 sec. is generated every 9 sec. If the pulse function is activated via remote control, the pause between 2 pulses can be modified. After activating the function via the "Pulse" push button, select the desired time within 5 sec.: $\widehat{\underline{\mathbf{A}}}$ = 9 sec., $\widehat{\underline{\mathbf{R}}}$ = 10 sec., $\widehat{\underline{\mathbf{H}}}$ = 15 sec., $\widehat{\underline{\mathbf{R}}}$ = 30 sec.
The impulse function of channel 2 depends only on motion! After each movement the HVAC channel is activated for 2.5 sec.; time delay starts afterwards for 9 sec.
The "Test" push button can be used to set the LED ON/OFF function. To do this, hold down the push button for 3 sec. Please note that in the open state and in test mode, the LED indicators are always ON.
Twilight switch function (CdS) If the CdS function is active, the detector acts as a simple twilight switch. Only the brightness can be set in this mode. Movements are no longer indicated by the red LED.
Push button acknowledgement: Each push of a button is indicated by lamp acknowledgement and by the white LED. "Light ON" status: OFF/ON (approx. 0.5 sec. each) "Light OFF" status: ON/OFF (approx. 0.5 sec. each)
12. Switch-off threshold brightness
-
If the switch-on threshold has been modified by the potentiometer or remote control, the switch-off threshold stored in the EEPROM is deleted and is then recalculated on the next activation. Determining the switch-off value
-
Switch on for 5 min. with dark and motion
-
Light OFF for 2 sec.
-
Internal calculation of the switch-off value
-
If the eye push button is pressed, the switch-off threshold is recalculated. See also Remote control -> Eye section
-
Switch-off delay If the determined switch-off threshold is exceeded during operation, the detector only switches off after a delay of approx. 15 minutes. This compensates for any brief fluctuations in the brightness.
13a. Behaviour of external push button/IR "Light"
The "Corridor" and "Light ON/OFF" functions are mutually exclusive. If both are activated, the detector performs the corridor function.
The behaviour when the push button is pressed is defined as follows:
Corridor function activated
Light ON: Push button pressed briefly: Light OFF -> Active after 5 sec. Push button held down: Light OFF -> Active after 5 sec.
Light OFF: Push button pressed briefly: Light ON as long as motion + Lag time Push button held down: Light ON as long as motion + Lag time
13b. Behaviour of external push button/IR "Light"
12 h Light ON/OFF activated
Light ON: Push button pressed briefly: Light OFF -> Active after 5 sec. Push button held down: 12 h OFF
Light OFF: Push button pressed briefly: Light ON as long as motion + Lag time Push button held down: 12 h ON
12 h Light ON/OFF deactivated
Light ON: Push button pressed briefly: Light OFF as long as motion + Lag time Push button held down: Light OFF as long as motion + Lag time
Light OFF: Push button pressed briefly: Light ON as long as motion + Lag time Push button held down: Light ON as long as motion + Lag time
13c. Behaviour of external push button/IR "Forced shutdown"
Forced shutdown active
Light OFF: Light OFF: Push button pressed briefly: Light ON for approx. 30 min., then forced shutdown if the set brightness is still exceeded.
14. Other functions
Activation of light for 12 h via mains interruption
- Interrupt current
- Apply current for 2 to 5 sec.
- Interrupt current again
- Apply current
- Detector is now ON for 12 h
Exiting sabotage
- Interrupt current
- Apply current for 30 to 60 sec.
- Interrupt current again
- Apply current
- Detector is in simple closed state
230 V AC permanently at the slave input If 230 V AC is applied at the slave input for longer than 10 sec., the light is switched on permanently. When the 230 V is removed, the light is switched off and automatic mode is activated.
230 V AC for 1 - 3 sec. at push button connection S If 230 V AC is applied for 1 - 3 sec. at push button connection S, this is interpreted as a slave signal at slave connection R. This ensures that the detector is compatible with previous versions.
15. Fully automatic and semi automatic mode (see functions IR-PD-2C)
Fully automatic operation In this operating mode, the lighting switches automatically on and off for increased comfort, depending on presence and brightness. Channel 1 switches on in the event of motion if "dark" is detected.
Semi automatic operation In this operating condition, in order to gain increased savings, the lighting is energized only after being manually switched on. Switch-off takes place automatically or manually. The semi automatic mode basically behaves like the fully automatic one. However, the difference is that switching-on must always be carried out manually! As many (NO-contact) buttons as desired can be wired in parallel on the "S" button input (ON/OFF).
Triggering in semi automatic mode: If the detector switches off in semi automatic mode (lag timer elapsed), the detector is switched on again within 10 sec. by motion (despite semi-automatic mode).
16. Range of Coverage
17. Exclude sources of interferences
In case the sensing area of the LUXOMAT® PD2.M-2C is too large or areas are being covered that should not be monitored, the range can be reduced or limited through use of the enclosed masking clips. MAN 6895-110511-2
18. Technical data PD2-Master-2C
Sensor and power supply in one case
Power supply: 230 V~ ±10%
Power consumption: < 1 W
Ambient temperature: 25°C to +50°C
Degree of protection/class: IP20 / II
Settings: Potentiometer, DIP-switch and by remote control
Light values: 20 - 1000 Lux (with remote control) 10 - 2000 Lux (with potentiometer)
Extension of the detection area: with Slave-devices
Area of coverage: circular 360°
Range of coverage Ø H 2,50 m / T = 18°C : seated 4 m / tangential 10 m / radial 6 m
Recommended height for mounting: 2 - 3 m
Light measurement: mixed light, daylight + artificial light
- Channel for light control
Type of contact: NOC/with pretravel tungsten contact
Contact load: 2300 W cos φ = 1 / 1150 VA cos φ = 0.5, μContact
Time-settings: 15 sec. - 16 min./ test with potentiometer 5 min. - 30 min./ test with remote control
- Channel 2 for control devices (only reacts on motion)
Contact load: 230 V~, 3 A cos φ = 1, μContact
Time-settings: 5 min. - 120 min. with time delay of 5 min. for follow-up time > 15 min./ Alarm impulse
Dimension: H x Ø [mm] PD2-M-2C SM FC FM 48 x 98 84,5 x 80 67 x 98
Visible portion when built into ceiling: 15 x 80 mm
Technical data PD2-Slave
Power supply: 230 V~ ±10%
Impulse output: Optocoupler max. 2 W
Impulse duration: 2 sec. or 9 sec.
Dimensions: see above
CE Declaration of Conformity: The product complies with the low voltage recommendation 2006/95/EC and the EMV recommendation 2004/108/EC.
19. Wiring diagram
M1 = HVAC function
Optional: T1 = NO-button for semi automatic mode; Extension of the detection area with Slave-devices
20. Article / Part nr. / Accessory
LUXOMAT® Remote control: IR-PD (incl. wall bracket) 92160 IR-PD-2C (incl. wall bracket) 92475
Accessory: BSK Ball basket guard 92199
21. LED function displays
