VAR.3_3kN_1.25_industrial.pdf

TLC

Architectural Metalwork

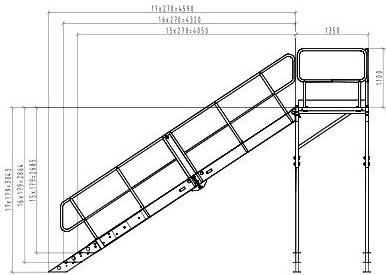

VAR.3 Railing 1.25 industrial type

Distributed load - 3kN/m2

Point load - 2kN (50x50) mm

Notes:

  1. Execution class: EXC2
  2. Steps: grating: 280x1250 OFF SHORE TYPE AP40
  3. Rails: Industrial
  4. Landing: grating 250x1250 OFF SHORE TYPE AP40
  5. Steel grades: S355, S235 for grating as per EN 10025
  6. Structure toasted as per EN ISO 13920, class C and G
  7. Surface preparation Sa 2 1/2 as per ISO 8501
  8. Zinc coating: hot dip galvanized coating as per EN ISO 1461

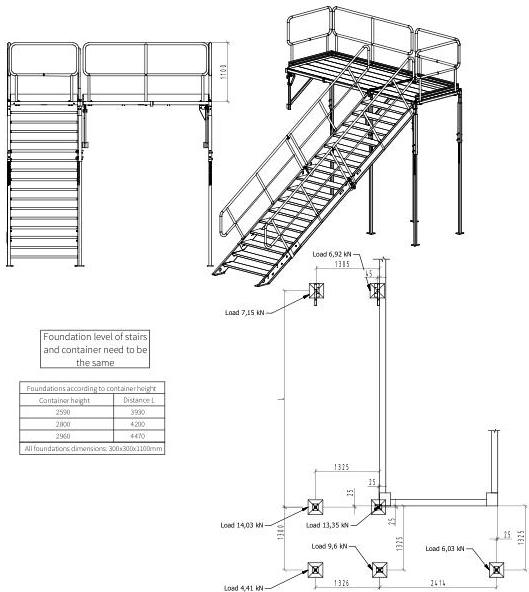

Foundation level of stairs and container need to be the same

Foundations according to container height
Container heightDistance L
25003500
28004200
29004470
All foundations dimensions: 300x300x1100mm

TLC Sp. z.o.o.

ul. Chopina 25 N, 38 300 Gorsice

+48 505 140 140

info@tlc.eu

www.tlc.eu

NIP 525 23 48 828

KRS 0000245912

REGON 140313868

Millennium Bank S.A. 56 1160 2202 0000 0002 6963 3842
