Var28_1,00_IG.pdf

TLC

Architectural Metalwork

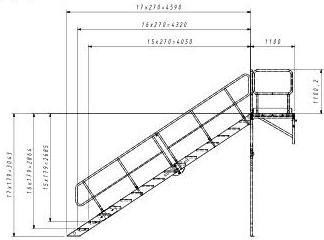

VAR 28-1,1 Railing industrial type

Distributed load - 34N/m2

Paint load - 1.54N (200x200)mm

Notes:

  1. Execution class: C022
  2. Steps: grating: 200x1000 OFF SHORE TYPE AP40
  3. Rails: industrial
  4. Landing: grating 240x2092 OFF SHORE TYPE AP40
  5. Steel grades: S355, S235 for grating as per CN 10025
  6. Structure treated as per CN ISO 12920, class C and G
  7. Surface preparation Sa 2 1/2 as per ISO 8501
  8. Zinc coating: hot dip galvanized coating as per CN ISO 146

Foundation level of stairs and container need to be the same

Foundation missing to container height
Container heightDistance x
22902000
20002290
20004090
All foundations dimensions: 300x300x1100mm
